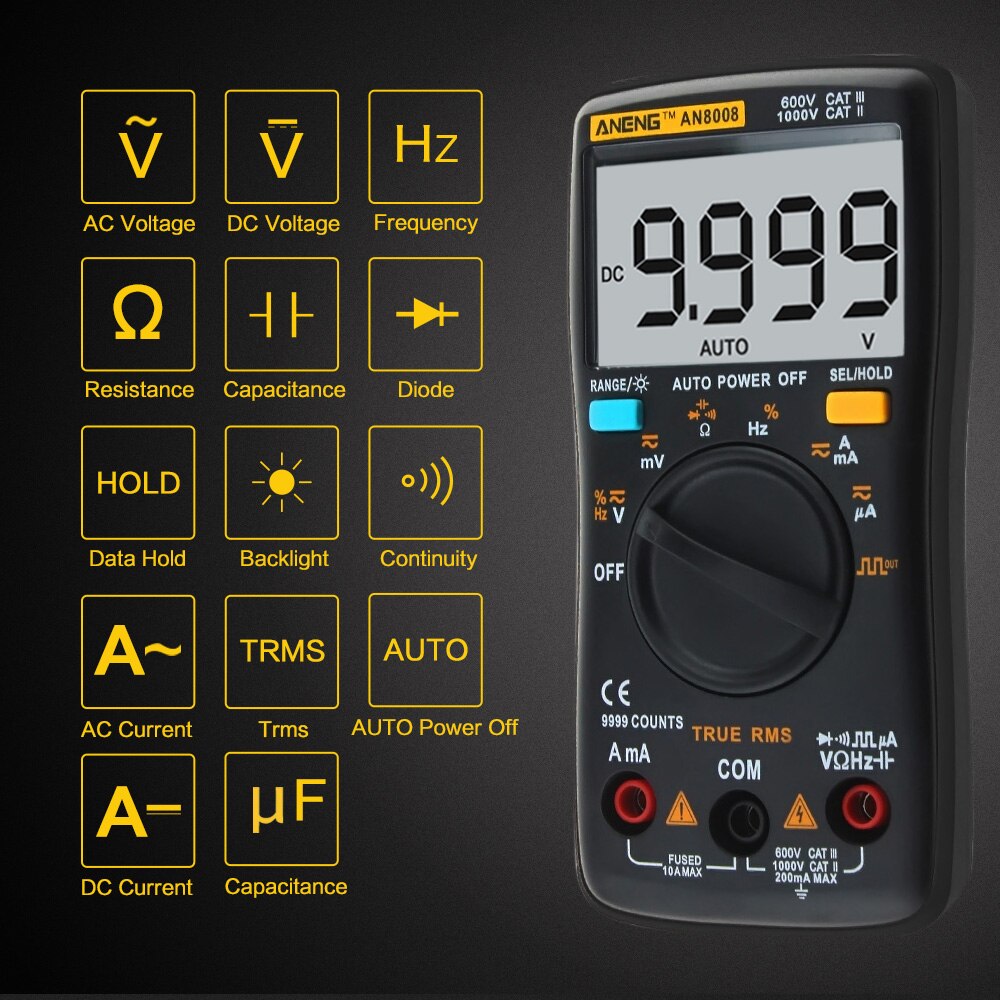

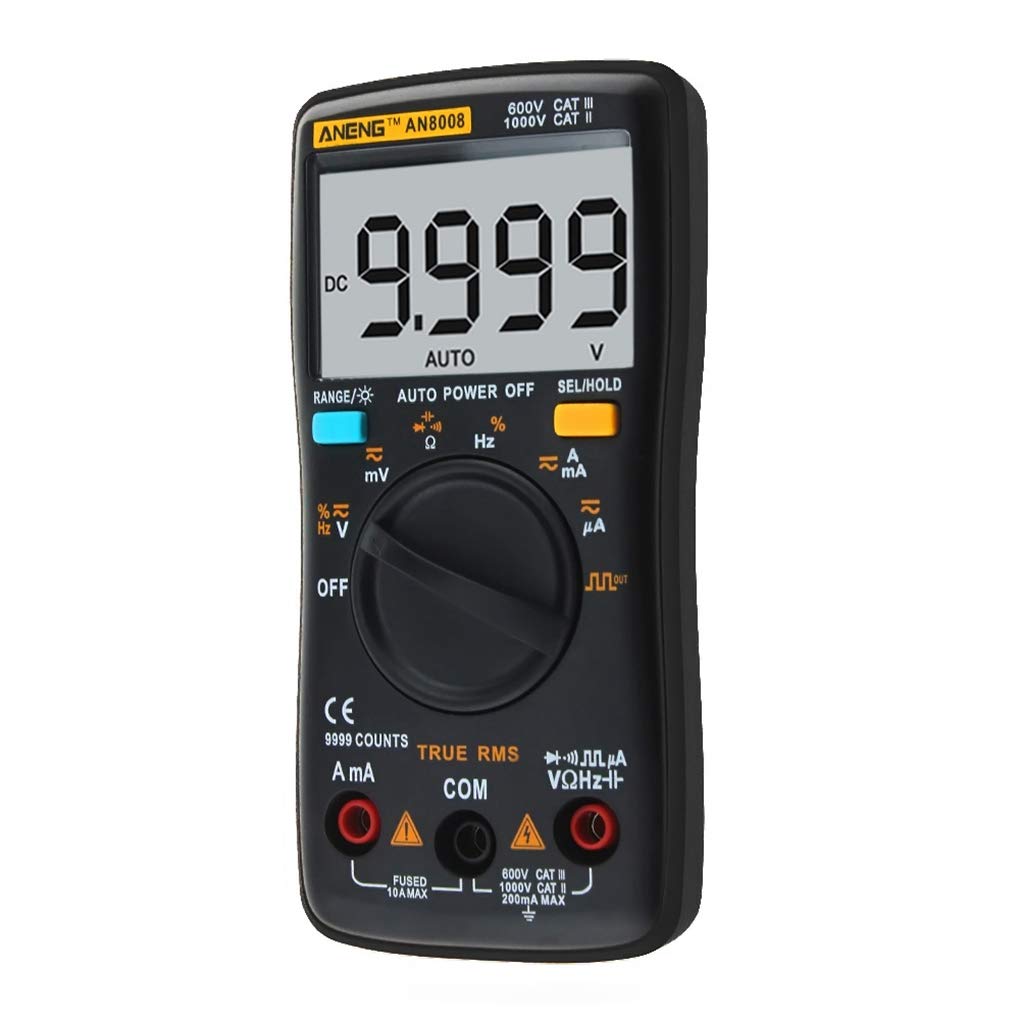

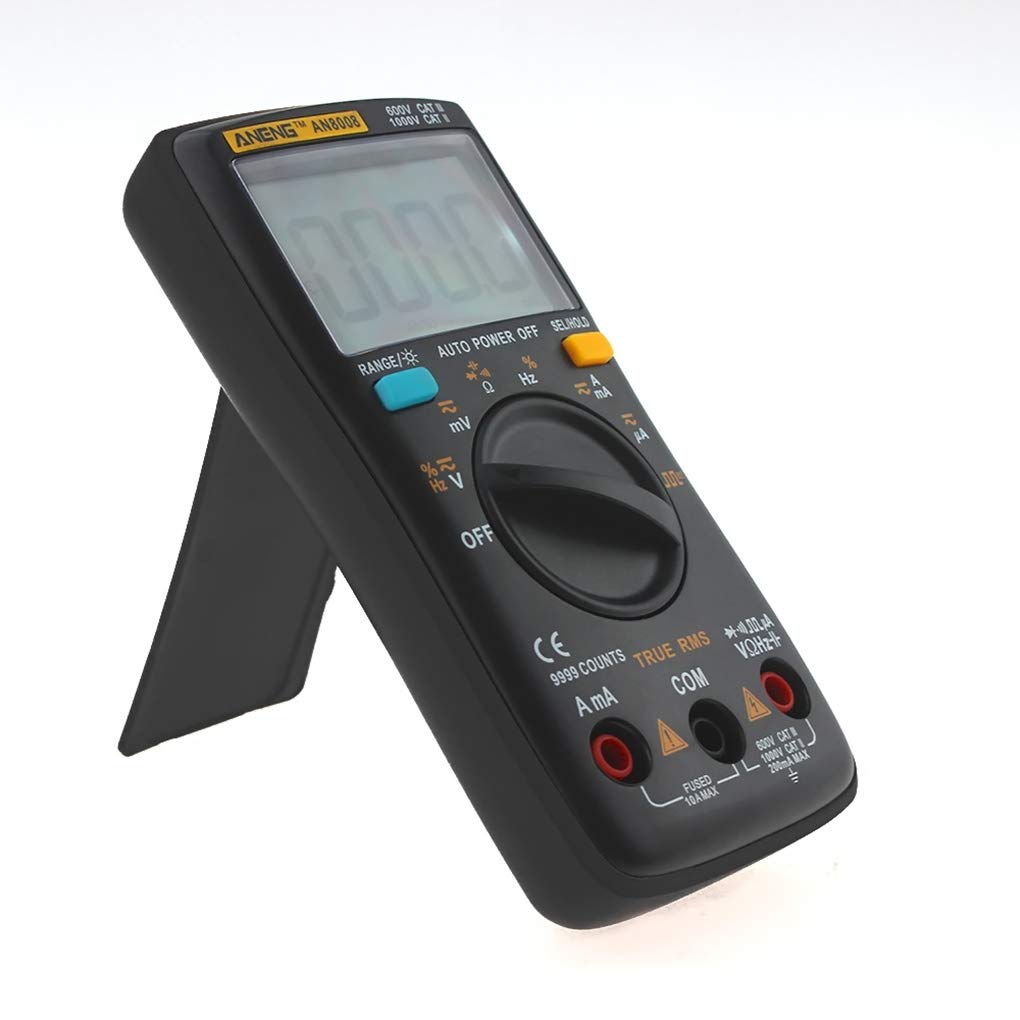

Smidig TRMS multimeter med autoskala, holdfunktion, bakgrundsbelyst display, auto-off.
Mäter spänning AC/DC, ström (mA, uA), resistans, kapacitans, diodtest, fyrkantsvåg (duty cycle).
Mycket smidig och prisvärd modell!
Size: 65*130.9*32.5mm
Capacitance: 9.999nF (±5.0%+20), 99.99nF/999.9uF/9.999uF/99.99uF/999.9uF(±2.0%+5), 9.999mF(±5.0%+5)
DC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V(±0.5%+3)
AC volts: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V(±1.0%+3)
DC current: 99.99uA/999.9uA(±0.8%+3), 999.9mA/9.999A(±1.0%+3)
AC current: 99.99uA/999.9uA(±1.0%+3), 999.9mA/9.999A(±1.2%+3)
Resistance: 99.99 Ω(±1.0%+3), 999.9/9.999K/99.99K/999.9K(±0.5%+3), 9.999 MΩ(±1.5%+3)
Frequency: 99.99/999.9/9.999k/99.99k/999.9k/9.999M (±0.1+2)
Duty cycle: 1% to 99%(±0.1%+2)
Counts 9999
Measurement mode: Double-integral style A/D transform
Over range indication: OL
Working environment: 0~40℃, relative humidity <80%
Power supply voltage: 3V (2 * AAA 1.5V) (Battery not included)
Operating Temperature: 0-40 ℃
Operating Humidity: ≤75%RH
Storage Condition: -20~60℃
Storage Humidity: ≤80%RH
Operating Mode: Auto/Manual Ranging
